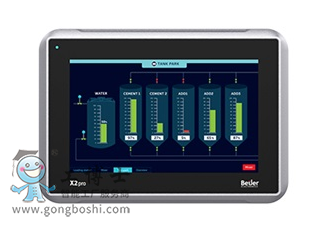

7'' HMI with iX software
800 × 480 pixel (16:9)
TFT-LCD touch screen
1.5 GB application memory
Ethernet 1x100 Mbit
-10°C to +60°C operating temperature
CE, FCC, KCC, UL approvals
DNV, KR, GL, LR, ABS, CCS marine approvals
Facts
General description
| Part number |
630000205 |
| Part status |
Active |
| Warranty |
2 year |
Certifications
| General |
CE, FCC, KCC, UL 61010-2-201 |
| Marine |
KR, LR, ABS, BV, CCS, NK, DNV GL |
Mechanical
| Mechanical size |
204 x 143 x 50mm |
| |
Panel Mount, VESA 75 x 75 |
| |
1million finger touch operations |
| Touch type |
Resistive |
| Cut-out size |
189 x 128mm |
| Weight |
0.8 kg |
| Housing material |
Powder-coated aluminum, Gray |
Power
| Input voltage |
24 V DC (18 to 32 VDC) CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supplymust conformwith the requirements for class II power supplies. |
| Power consumption (max) |
14.4W |
| Input fuse |
Internal DC fuse |
| CPU |
i.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache |
| RAM |
512 MB |
| FLASH |
2GB SSD(eMMC), 1.5GB free for application |
Display
| Size diagonal |
7" diagonal |
| Resolution |
800x480 pixels |
| Backlight |
LED Backlight |
| Backlight life time |
20000 hours |
| Backlight brightness |
350 cd/m2 |
| Backlight dimming |
Industrial Dimming |
| Display type |
TFT-LCD with LED backlight |
Communication serial
| Number of serial ports |
1 Port 9pin DSUB |
| Serial port 1 |
RS 232 (RTS/CTS) |
| Serial port 2 |
RS422/485 |
| Serial port 3 |
RS485 (only if COM 2 is RS485) |
Ethernet communication
| Number of Ethernet ports |
1 |
| Ethernet port 1 |
1x10/100 Base-T (shielded RJ45) |
Expansion interface
| Expansion port |
Yes, ciX expansion module |
| SD card |
SD and SDHC |
| USB |
1xUSB 2.0 500mA |
Environmental
| Operating temperature |
-10°C to +60°C |
| Storage temperature |
-20°C to +70°C |
| Shock |
15g, half-sine, 11ms according to IEC60068-2-27 |
| Vibration |
1g, according to IEC 60068-2-6, Test Fc |
| Sealing front |
IP65, NEMA 4X/ 12 and UL Type 4X/ 12 |
| Sealing back |
IP20 |
| Humidity |
5% – 85% non-condensed |
