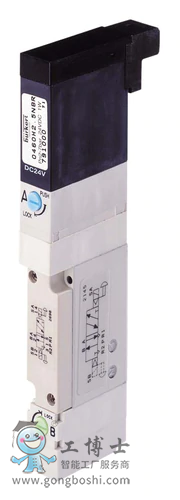

| Type |
0461 |
|
| Product sub-group |
Pneumatic valves |
|
| Valve function |
L - middle position all port connections closed - inlet port 1, outlet port 4 and 2, vent of outlet ports to 5 respectively 3 |
|
| Valve function pulse version |
3-conductor version with common plus pole |
|
| Fluidic port connection number |
5 |
|
| Valve function number of switching positions |
3 |
|
| Valve function manual actuation |
Yes |
|
| Valve function manual actuation type |
Rotary level and Key button combined |
|
| Valve function manual actuation material |
PA (Polyamide) |
|
| Valve function manual actuation stop |
Yes |
|
| Valve function manual actuation screw slot |
Yes |
|
| Pneumatic pilot valve 1 |
Plunger-type system integrated |
|
| Valve piloting type |
Electric |
|
| Return type |
Pneumatic spring + mechanical spring |
|
| Pilot control orifice (mm) |
0,5 |
mm |
| Pilot control material medium-contacting |
PA (Polyamide) |
|
| Pilot control material environment-contacting |
PA (Polyamide) |
|
| Pilot control seal material |
NBR (Nitrile rubber) |
|
| Main valve operating principle |
Slide valve |
|
| Main valve orifice 1 (P) (mm) |
4 |
mm |
| Main valve wetted material |
PA (Polyamide) |
|
| Main valve material environment-contacting |
PA (Polyamide) |
|
| Main valve seal material |
NBR (Nitrile rubber) |
|
| Supply connection type |
Flanged |
|
| Flange |
FM19 |
|
| Working connection type |
Flanged |
|
| Working connection position |
on pneumatic module |
|
| Working connection flange pattern |
FM19 |
|
| Coil size |
10 |
mm |
| Electrical power consumption min |
0,4 |
W |
| Electircal power consumption max. |
0,4 |
W |
| Coil wiring LED |
No |
|
| Coil wiring overvoltage protection |
without |
|
| Coil wiring rectifier |
No |
|
| Coil wiring polarity protection |
No |
|
| Coil wiring polarity recovery diode |
No |
|
| Coil wiring polarity recovery diode redundant |
No |
|
| Power reduction integrated |
No |
|
| Electrical connection sort |
Rectangular plug 2,54 mm, 3-pin |
|
| Cable plug in delivery |
not included |
|
| Electrical connection position |
Supply side |
|
| Electrical connection polarity |
Irrelevant |
|
| Electrical connection number of contacts |
3 |
|
| Voltage / rated voltage |
24 |
V |
| Voltage / rated voltage |
24 |
V |
| Protection type (IP max. with suitable connector) |
IP20 |
|
| AC voltage |
No |
|
| DC voltage |
Yes |
|
| Battery voltage |
Yes |
|
| Nominal pressure min |
2 |
bar |
| Nominal pressure max |
7 |
bar |
| Temperature environment min |
5 |
°C |
| Temperature environment max |
50 |
°C |
| Temperature medium min |
5 |
°C |
| Temperature medium max |
50 |
°C |
| Mounting type |
Metric screws |
|
| Mounting dimensions |
M2,5 x 40 |
|
| Mounting material |
Stainless steel |
|
| Switch time open max. |
20 |
ms |
| Switch time close max. |
50 |
ms |
| Add-on dimension 1 |
16,5 |
mm |
| QNn value (gas) |
500 |
l/min |
| Nominal operation/Duty cycle |
100 |
% |
