VEGASON 61超聲波傳感器用于液體和粒料的持續性物位測量。 典型應用包括儲藏容器或露天池的液體測量。 測量儀表也適于小型容器或敞開貨柜的粒料測量。 無接觸測量技術不受填料特性影響，可以無介質啟用。

您的獲益

· Price-favourable solution for simple applications

· Maintenance-free operation through non-contact measuring principle

· Reliable measurement independent of product features

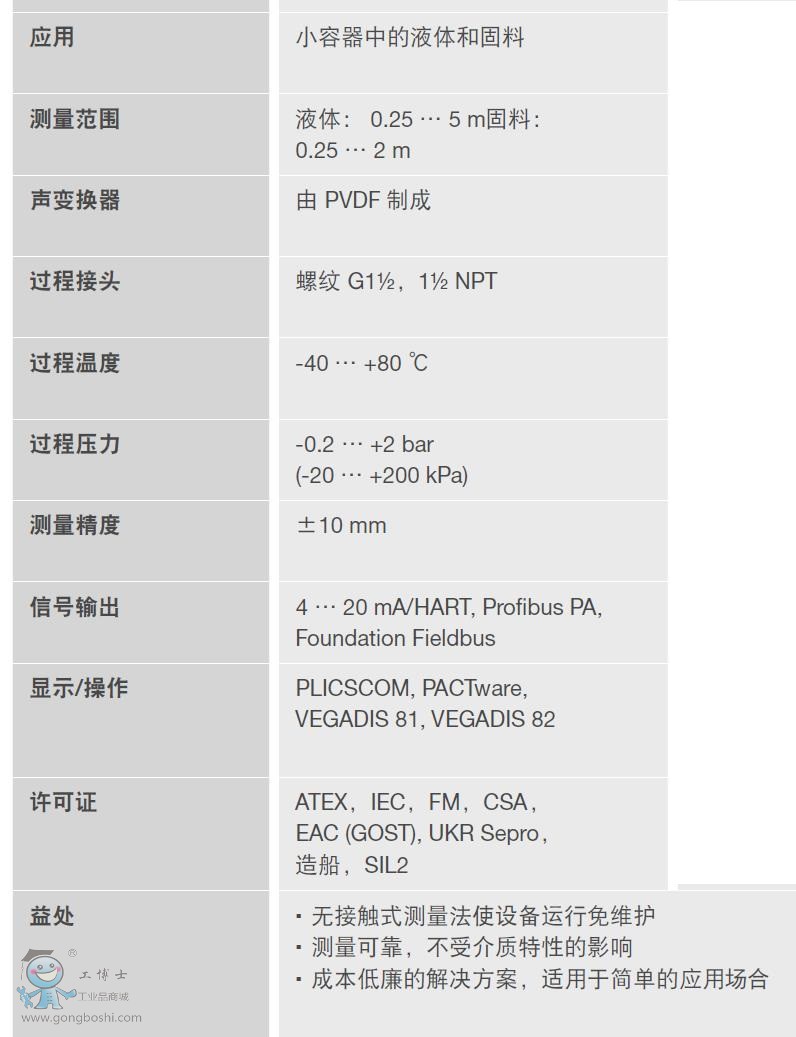

技術參數

Measuring range - Distance

5 m

Process temperature

-40 ... 80 °C

Process pressure

-0.2 ... 2 bar

Accuracy

± 10 mm / ± 0.4"

Materials,-wetted-parts

PVDF

Threaded-connection

≥ G1½, ≥ 1½ NPT

Hygenic fittings

§ Clamp ≥ 2", DN50 - DIN32676, ISO2852

§ Clamp ≥ 3", DN65 - DIN32676, ISO2852

§ Clamp ≥ 3½" , DN80 - DIN32676, ISO2852

§ Clamp ≥ 4" , DN100 - DIN32676, ISO2852

§ Slotted nut ≥ 3", DN65 - DIN 11851

§ Slotted nut ≥ 3½", ≥ DN80 - DIN 11851

§ Slotted nut ≥ 4", ≥ DN100 - DIN 11851

Seal-material

§ EPDM

§ FKM

Housing-material

§ Plastic

§ Aluminium

§ Stainless steel (precision casting)

§ Stainless steel (electropolished)

Protection-rating

§ IP 66/IP 68 (0.2 bar)

§ IP 66/IP 67

§ IP 66/IP 68 (1 bar)

Output

§ Profibus PA

§ Foundation Fieldbus

§ 4 … 20 mA/HART - two-wire

§ 4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 80 °C
