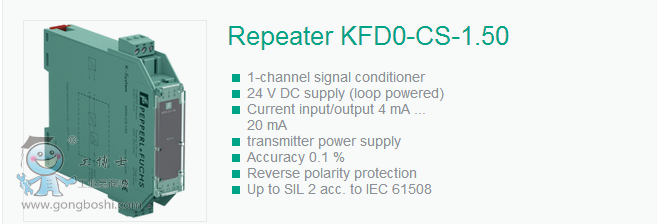

| 1-channel |
| General specifications |
| Signal type |
Analog input |
| Supply |
| Rated voltage |
loop powered |
| Power dissipation |
0.2 W |
| Control circuit |
| Connection |
terminals 12-, 11+ |
| Voltage |
10 ... 35 V DC |
| Current |
4 ... 20 mA |
| Power dissipation |
< 150 mW per channel at 25 mA and U < 26.1 V |
| < 400 mW per channel at 25 mA und U > 26.1 V |
| Field circuit |
| Connection |
terminals 1+, 2- |
| Voltage |
≥ 0.9 x Uin - (0.23 x current in mA) - 0.7 for 10 V < Uin < 26.1 V |
| ≥ 23 V - (0.23 x current in mA) for Uin > 26.1 V |
| Short-circuit current |
max. 100 mA |
| Transfer current |
max. 25 mA |
| Transfer characteristics |
| Rise time |
≤ 5 ms at 4 ... 20 mA and Uin = input voltage < 26 V |
| Directive conformity |
| Electromagnetic compatibility |
|
| |
Directive 2004/108/EC |
EN 61326-1:2006 |
| Conformity |
| Insulation coordination |
EN 50178:1997 |
| Electromagnetic compatibility |
NE 21:2006 |
| Degree of protection |
IEC 60529:2001 |
| Ambient conditions |
| Ambient temperature |
-20 ... 60 °C (-4 ... 140 °F) |
| Mechanical specifications |
| Degree of protection |
IP20 |
| Mass |
approx. 100 g |
| Dimensions |
20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) , housing type B1 |
| Mounting |
on 35 mm DIN mounting rail acc. to EN 60715:2001 |
